    SSLB - 110 Ton - 2 ft. Outside Spread - SSLB-110-2

    $5,456.25
    This lifting beam is ideal for short span applications and can be used where headroom is limited.The summery specs are; 110 Ton - 2 ft. Outside Spread - SSLB-110-2
    SKU: PL-SSLB-110-2
    Manufacturer part number: SSLB-110-2

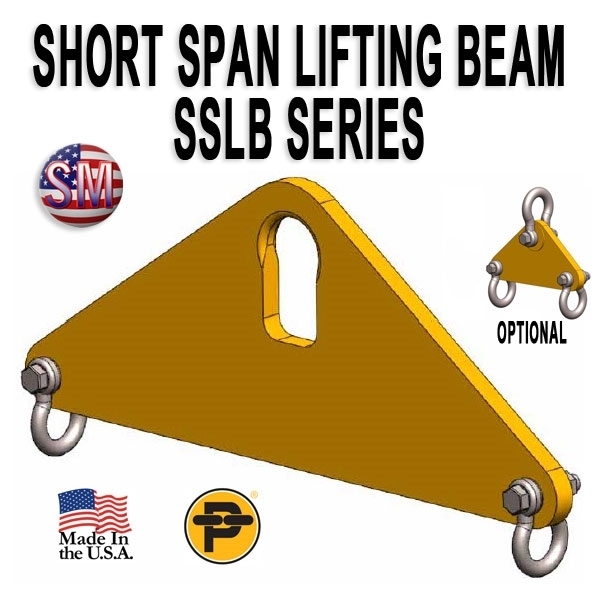

    Peerless - Short Span Lifting Beam (Plate Style) - # SSLB-110-2

    Lifting Capacity 110 Ton with a 2 ft. Outside Spread

    Benifits:

    • This lifting beam is ideal for short span applications and can be utilized where headroom is limited.
    • Supplied with a pair of shackles and one standard spread.
    • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
    • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

    Options:

    • Additional lift points
    • Higher capacities (supplied w/upper shackle)
    • Additional lengths
    • Upper shackle
    • Upper shackle w/oblong link
    • Hooks
    Products specifications
    Beam TypeSSLB Short Span Lifting Beam (plate style)
    Capacity Tons110
    Weight lbs.960
    Outside Spread (Ft.)2
    Headroom40
    Bail Height5.25
    Bail Opening Height20
    Bail Opening Width8
    Bail Thickness0.50
    Shackle Size2-1/2
    Shackle Clearance7
