    SSLB - 10 Ton - 3 ft. Outside Spread - SSLB-10-3

    $950.63
    This lifting beam is ideal for short span applications and can be used where headroom is limited.The summery specs are; 10 Ton - 3 ft. Outside Spread - SSLB-10-3
    SKU: PL-SSLB-10-3
    Manufacturer part number: SSLB-10-3

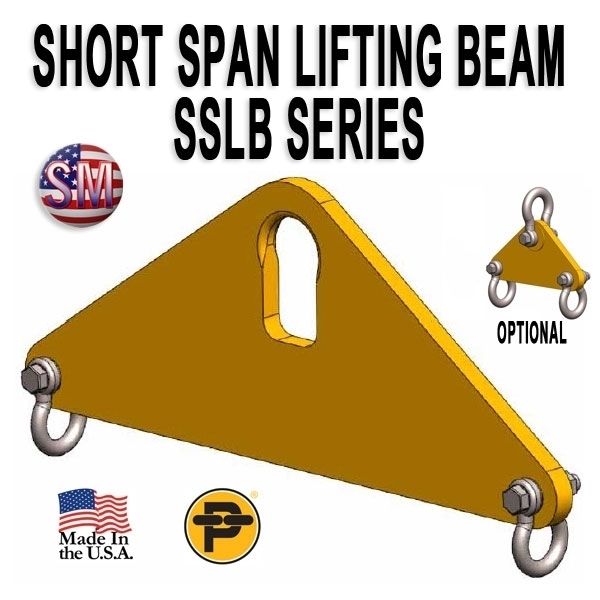

    Peerless - Short Span Lifting Beam (Plate Style) - # SSLB-10-3

    Lifting Capacity 10 Ton with a 3 ft. Outside Spread

    Benifits:

    • This lifting beam is ideal for short span applications and can be utilized where headroom is limited.
    • Supplied with a pair of shackles and one standard spread.
    • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
    • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

    Options:

    • Additional lift points
    • Higher capacities (supplied w/upper shackle)
    • Additional lengths
    • Upper shackle
    • Upper shackle w/oblong link
    • Hooks
    Products specifications
    Beam TypeSSLB Short Span Lifting Beam (plate style)
    Capacity Tons10
    Weight lbs.140
    Outside Spread (Ft.)3
    Headroom16.1
    Bail Height2.00
    Bail Opening Height7
    Bail Opening Width4
    Bail Thickness0.50
    Shackle Size7/8
    Shackle Clearance2.1
