Plate Dollies are manufactured with a 3/8" thick raised diamond pattern aluminum or steel tread-plate. A smooth deck is available upon request. Dollies are approximately 6" high and include 4" x 2" mold-on-rubber casters, 2 swivel with brake and 2 rigid (Suffix-AS features (4) swivel casters with locks).
Optional pull strap or hook is available separately.
Aluminum Plate Dollies | |||||
Model | Deck Size (WxL) | Uniform Static Capacity (lbs) | Deck Height | Caster Size | Wt. (lbs) |
VPLDO/A-1418 | 14"x18" | 1,200 | 6-1/8" | 4"x2" | 37 |
VPLDO/A-1824 | 18"x24" | 1,200 | 6-1/8" | 4"x2" | 43 |
VPLDO/A-2430 | 24"x30" | 1,200 | 6-1/8" | 4"x2" | 47 |
VPLDO/A-1418-AS | 14"x18" | 1,200 | 6-1/8" | 4"x2" | 37 |
VPLDO/A-1824-AS | 18"x24" | 1,200 | 6-1/8" | 4"x2" | 43 |
VPLDO/A-2430-AS | 24"x30" | 1,200 | 6-1/8" | 4"x2" | 47 |
Steel Plate Dollies | |||||
Model | Deck Size (WxL) | Capacity (lbs) | Deck Height | Caster Size | Wt. (lbs) |
VPLDO/S-1418 | 14"x18" | 1,200 | 6" | 4"x2" | 51 |
VPLDO/S-1824 | 18"x24" | 1,200 | 6" | 4"x2" | 73 |
VPLDO/S-2430 | 24"x30" | 1,200 | 6" | 4"x2" | 110 |
VPLDO/S-1418-AS | 14"x18" | 1,200 | 6" | 4"x2" | 51 |
VPLDO/S-1824-AS | 18"x24" | 1,200 | 6" | 4"x2" | 73 |
VPLDO/S-2430-AS | 24"x30" | 1,200 | 6" | 4"x2" | 110 |
Options | |||||
STRAP-8 | 7 Foot 3 Inches Long Nylon Loop Pull Strap | 2 | |||
HOOK-8 | 4 Foot Long Metal Hook | 3 |

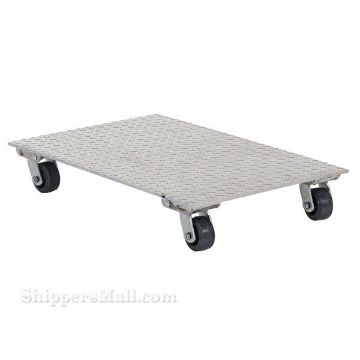

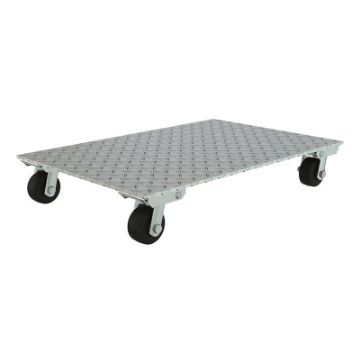

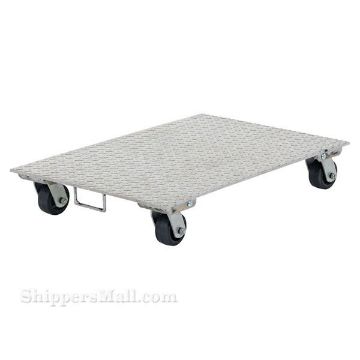

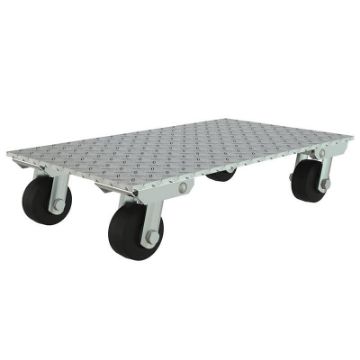

Aluminum Plate Dollies are ideal for the shipping and distribution facilities. The construction is manufactured from heavy-duty raised diamond tread plate for strength and extra grip. Casters are available in cast steel or rubber construction for smooth rolling.

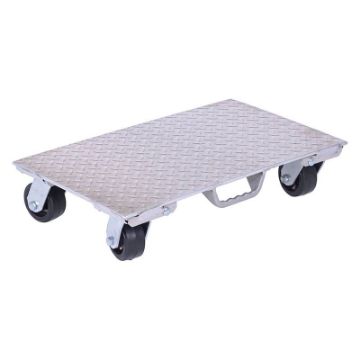

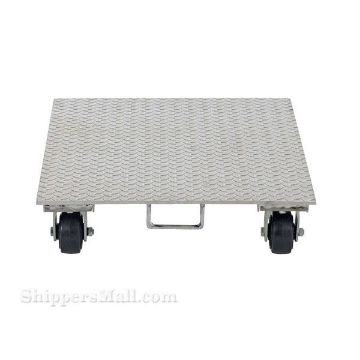

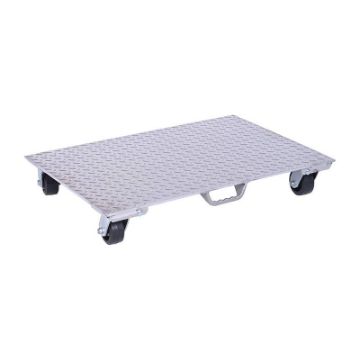

Dollies with the suffix "H" includes a carrying handle on one end for easy transporting when dolly is empty.
Aluminum Plate Dollies | ||||
Model | Caster Type | Capacity (lbs) | Handle | Wt. (lbs) |
PDA-1627-C-S | Cast Steel Swivel | 2,800 | No | 82 |
PDA-2436-C-S | Cast Steel Swivel | 2,800 | No | 90 |
PDA-1627-R-S | Rubber Swivel | 1,200 | No | 65 |
PDA-2436-R-S | Rubber Swivel | 1,200 | No | 82 |
PDA-1627-C-S-H | Cast Steel Swivel | 2,800 | Yes | 82 |
PDA-2436-C-S-H | Cast Steel Swivel | 2,800 | Yes | 90 |
PDA-1627-R-S-H | Rubber Swivel | 1,200 | Yes | 65 |
PDA-2436-R-S-H | Rubber Swivel | 1,200 | Yes | 82 |
