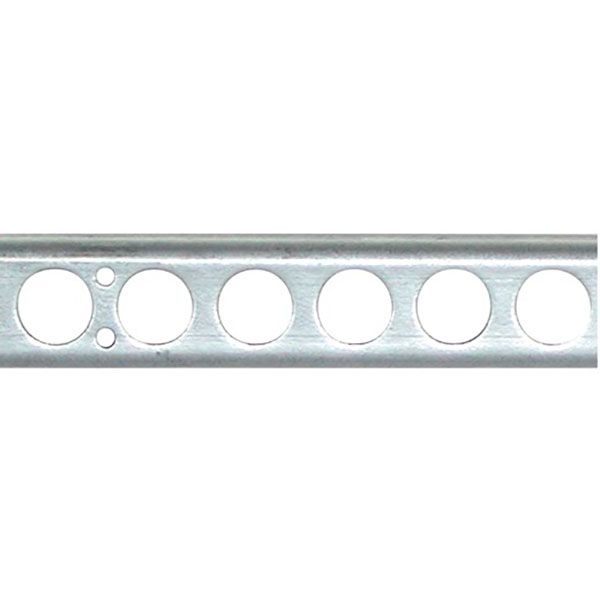

Ancra F Channel with 1.62" hole spacing 3/4" Hole diameter, 10 ft. - 47235-10

10 foot ft. series F channel galvanized horizontal logistic track is engineered for the purpose of providing you and your loads the strongest and most reliable support for your cargo securement jobs. Once installed, the track can be used with logistic straps that are equipped with series F end fittings, allowing you to secure your cargo flat against the trailer wall. In addition, the track can be used with shoring bars to keep cargo stable throughout transit.

Built and tested for strength with 12-gauge steel, Ancra’s series F galvanized horizontal track has a G-90 hot dip finish with a surface chemical treatment in order to withstand corrosion. Custom lengths and special finishes are available; contact our Customer Service Department.

WARNING: Reference TTMA RP No. 47 for installation. Attach our track using screws, rivets, or by welding. Contact your vehicle manufacturer or qualified installer to determine fastener size and mounting method. Welding of galvanized material may emit toxic fumes. Please use caution and proper ventilation.

• Galvanized. 1.62 in. hole spacing.
•  0.756 hole diameter.
• Weight/length: 9.0 lbs./10 ft., 4.05 kg./3 m.
• Strength: 50,000 lbs./22,727 kg. minimum yield.
