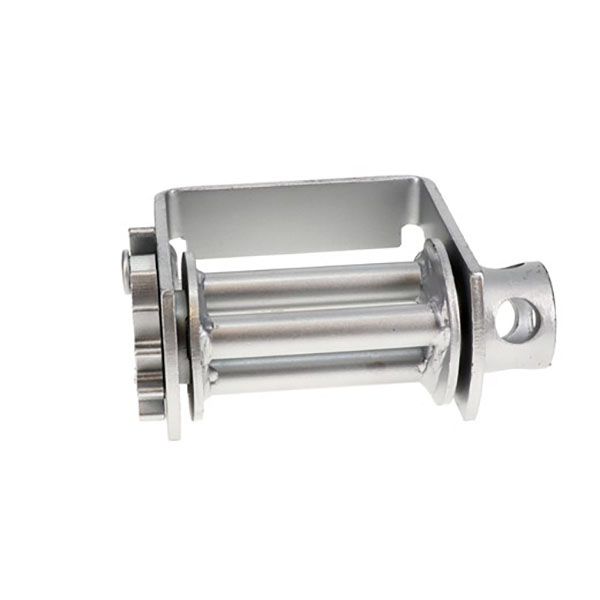

Winch 3-Bar Standard Double L Track Slider, Zinc Plated

Features

Designed to allow quick strap insertion in icy conditions, the 3-bar double L track X-Treme zinc sliding winch provides high durability for flatbed operations. Made with high-performance steel components, including a high-strength alloy pawl pin and convenient 3-bar mandrel, the web winch easily supports heavy-duty cargo. With the ability to slide anywhere along the trailer with the use of double L track, the 3-bar sliding winch provides versatility and provides you with options to adapt and take on challenging tie-down tasks. To protect the winch from rust and corrosion, Ancra added the X-Treme zinc finish, which is our highest performing finish. When subjected to harsh sodium chloride, calcium chloride, and sodium bicarbonate testing cycles, the X-Treme zinc finish withstood 720 hours and suffered only 1% of rust across the entire unit, while the black powder coat suffered five times as much, the black e-coat ten times as much, and the zinc plating sixty times as much.

The 3-bar double L track X-Treme zinc sliding web winch can be easily installed at any position along either side of a flatbed trailer frame with double L track for easy access. The winch locks into place on the track as soon as tension is applied to the webbing. With a working load limit of 5,500 lbs, X-Treme zinc finish, and 3-bar design, the 3-bar web winch makes for a strong and dependable solution for tying down heavy-duty cargo.

Ancra winches comply with DOT, WSTDA-T3 and Canadian Standard 905 regulations.

Specifications

Weight (lbs) 8.7
Weight (kgs) 3.9
Overall Width (inches) 8.6
Inside Frame Width (inches) 4.9
Frame Height (inches) 5.7
Frame Depth (inches) 4
Maximum width of strap used with (inches) 4
WLL - w/Webbing (lbs) 5500
WLL - w/Webbing (kgs) 2497
Stamped w/WLL true
Bottom Mount false
EPDM false
Finish X-Treme Zinc
Material Steel
