    SSLB - 1Ton - 1 ft. Outside Spread - SSLB-.1-1

    This lifting beam is ideal for short span applications and can be used where headroom is limited.The summery specs are; 1Ton - 1 ft. Outside Spread - SSLB-.1-1
    SKU: PL-SSLB-1-1
    Manufacturer part number: SSLB-1-1
    $495.00
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

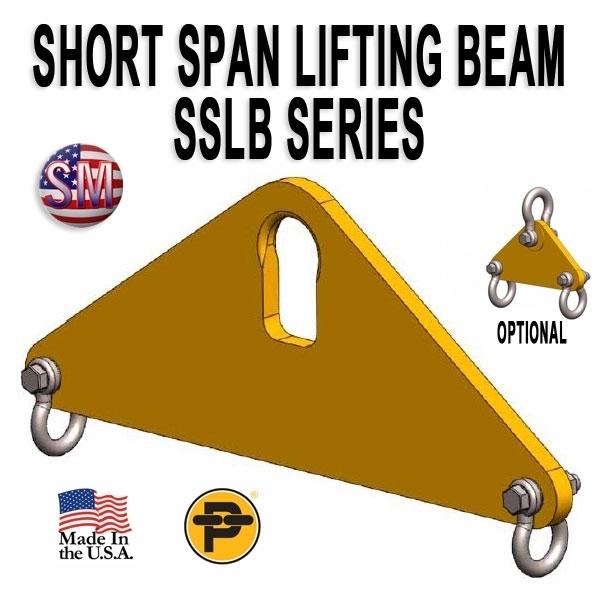

    Peerless - Short Span Lifting Beam (Plate Style) - # SSLB-1-1

    Lifting Capacity 1Ton with a  1 ft. Outside Spread

    Benifits:

    • This lifting beam is ideal for short span applications and can be utilized where headroom is limited.
    • Supplied with a pair of shackles and one standard spread.
    • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
    • 100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.

    Options:

    • Additional lift points
    • Higher capacities (supplied w/upper shackle)
    • Additional lengths
    • Upper shackle
    • Upper shackle w/oblong link
    • Hooks
    Products specifications
    Beam TypeSSLB Short Span Lifting Beam (plate style)
    Capacity Tons1
    Weight lbs.20
    Outside Spread (Ft.)1
    Headroom9.6
    Bail Height0.88
    Bail Opening Height5
    Bail Opening Width3
    Bail Thickness0.50
    Shackle Size5/8
    Shackle Clearance1.6
