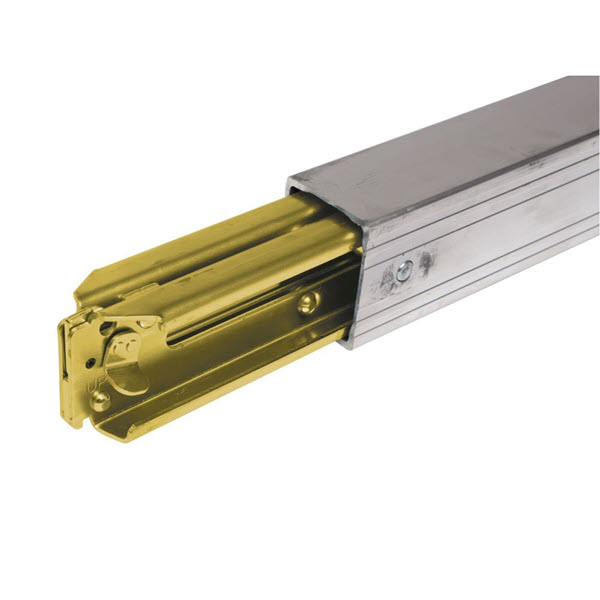

67-Inch to 78-Inch Series E or A Aluminum Deck/Shoring Beam for Shipping Containers

A quick and easy way to keep your trailer organized, Kinedyne's Series E or A Aluminum Decking/Shoring Beams can adjust from 84.6 inches to 95 inches, making it a good choice for your trailer. Keep your cargo separated and secure against this sturdy Beam.

What makes our Decking/Shoring Beam stand out among the rest is our unique KwikLatch Release Tab. Standard beams use a tab style button to release the beam from the track. This button extends past the top surface of the beam, making it prone to damage and difficult to engage while wearing gloves or while it's in an elevated position.

Our KwikLatch Release Tab is Kinedyne's solution to those problems. Our ergonomic finger tab is located on both sides of the beam head, making it less prone to damage and much easier to reach for releasing the beam, even if you're wearing gloves.

Our Series E or A Decking/Shoring Beam are made from extruded high strength aluminum in order to provide you with maximum strength at minimum weight. The head assembly is built tough from hardened steel with a zinc plated finish so that it can keep a firm hold with the Series E or A Track.

• Decking Working Load Limit: 2,200 Lbs. / 1,000 Kgs.
• Shoring Working Load Limit: 2,000 Lbs. / 910 Kgs.
• Series Type: Series E or A
• Width: 2.57 Inches
• Height: 3.22 Inches
• Minimum Length: 67 Inches
• Maximum Length: 78 Inches
• Weight: 16.69 Lbs.
• Beam Head Assembly Type: Kinedyne 80007 KwikLatch Release Head Assembly
