Grade 100 Chain, Strong Alloy Lifting Chain, Made in America
Peerless alloy chain is rugged, versatile, high-strength, low-weight chain manufactured from special analysis alloy steel. It is quenched and tempered before proof testing and the ultimate tensile strength is over twice that of ordinary steel chain. Tensile strength following heat treatment meets or exceeds all existing OSHA, Government, NACM and ASTM specification requirements. Large diameter grade 80 alloy chain is also available upon request. Sizes available are 1-1/2", 1-3/4", and 2”. Click here to request large diameter grade 80 alloy chain.

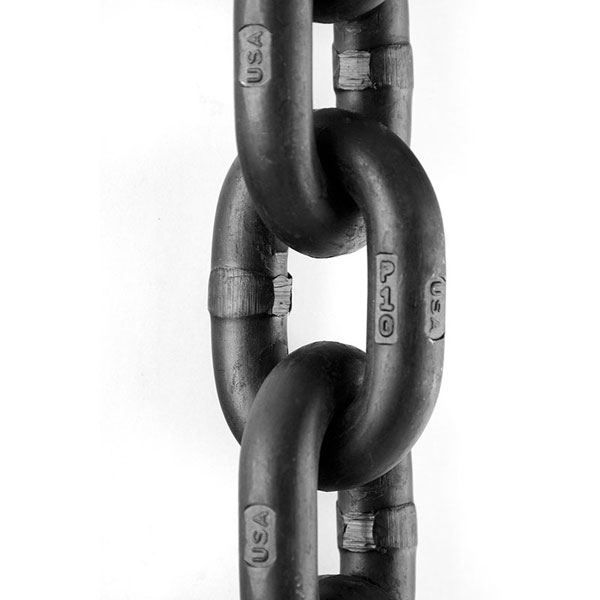

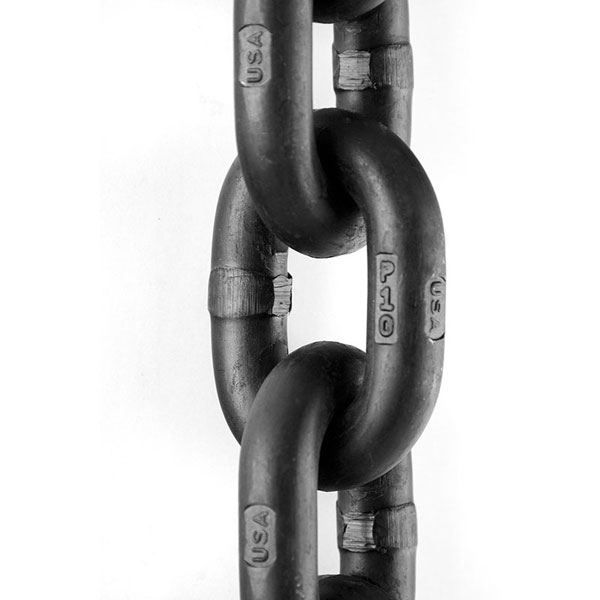

Grade 100 chain, similar to the Grade 80 chain, is commonly used for overhead lifting applications because of its excellent energy absorption properties; however Grade 100 chain has the greatest strength to weight ratio of the alloy chains. Peerless grade 100 chain and components meet the latest guidelines of the National Association of Chain Manufacturers (NACM). ASTM A952/A952M and ASTM A973/A973M. For fast identification, Peerless Grade 100 chain is embossed USA and stamped P10. For quality control, Peerless chain is date coded for easy traceability.
WHY CHOOSE GRADE 100 CHAIN OVER GRADE 80 CHAIN?
- 100 chain is on average a 25% greater Working Load Limit (WLL) over 80 chain.
- Users can experience more working power (WLL) with a smaller diameter chain based upon application.
- Grade 100 reduces the wear on the outer link from dragging on continuous contact with abrasive materials - and because Grade 100 is harder and more durable, inner link wear associated with normal use is reduced as well - which extends the life of the chain.
- Special chemistry and heat treating processes make Grade 100 our strongest chain option.
| P/N & Description | Package Type | Trade Size inchs | Wire Dia. | Inside Dim. Length (Nominal) | Inside Dim. Width (Min) | Ft/Drum | Weight (Lbs./ft.) | Weight p/Drum | Working Load Limit lbs. |
| 5510223 - 9/32" Grade 100 Alloy Chain | Full Drum | 9/32 | 0.283 | 0.87 | 0.405 | 800 | 0.725 | 580 | 4300 |
| 5510323 - 5/16" Grade 100 Alloy Chain | Full Drum | 5/16 | 0.332 | 1.01 | 0.48 | 500 | 1.054 | 527 | 5700 |
| 5510423 - 3/8" Grade 100 Alloy Chain | Full Drum | 3/8 | 0.404 | 1.226 | 0.56 | 500 | 1.536 | 768 | 8800 |
| 5510623 - 1/2" Grade 100 Alloy Chain | Full Drum | 1/2 | 0.529 | 1.57 | 0.75 | 300 | 2.71 | 813 | 15000 |
| 5510823 - 5/8" Grade 100 Alloy Chain | Full Drum | 5/8 | 0.641 | 1.988 | 0.902 | 200 | 3.787 | 757 | 22600 |
| 5510923 - 3/4" Grade 100 Alloy Chain | Full Drum | 3/4 | 0.812 | 2.417 | 1.139 | 100 | 6.293 | 629 | 35300 |
| 5511023 - 7/8" Grade 100 Alloy Chain | Full Drum | 7/8 | 0.906 | 2.66 | 1.26 | 100 | 7.926 | 793 | 42700 |
| 5511123 - 1" Grade 100 Alloy Chain | Full Drum | 1 | 1.062 | 3.092 | 1.42 | 50 | 10.1 | 505 | 59700 |
| 5510224 - 9/32" Grade 100 Alloy Chain | Half Drum | 9/32 | 0.283 | 0.87 | 0.405 | 400 | 0.725 | 290 | 4300 |
| 5510324 - 5/16" Grade 100 Alloy Chain | Half Drum | 5/16 | 0.332 | 1.01 | 0.48 | 250 | 1.054 | 264 | 5700 |
| 5510424 - 3/8" Grade 100 Alloy Chain | Half Drum | 3/8 | 0.404 | 1.226 | 0.56 | 250 | 1.536 | 384 | 8800 |
| 5510624 - 1/2" Grade 100 Alloy Chain | Half Drum | 1/2 | 0.529 | 1.57 | 0.75 | 150 | 2.71 | 407 | 15000 |
| 5510824 - 5/8" Grade 100 Alloy Chain | Half Drum | 5/8 | 0.641 | 1.988 | 0.902 | 100 | 3.787 | 379 | 22600 |
Peerless Grade 100 Alloy Chain USA - Group P/N: PL-GR100-GRP
*Scroll down to choose your referenced size.
