    Manufacturer: Vestil Mfg

    Stacker Narrow Mast Pwr Drive, Fixed Forks/Legs.,

    NarrowNarrow Mast Stackers with Powered Drive and Powered Lift. - Fixed Forks / Fixed Support Legs (works with skids only)

    Scroll Down

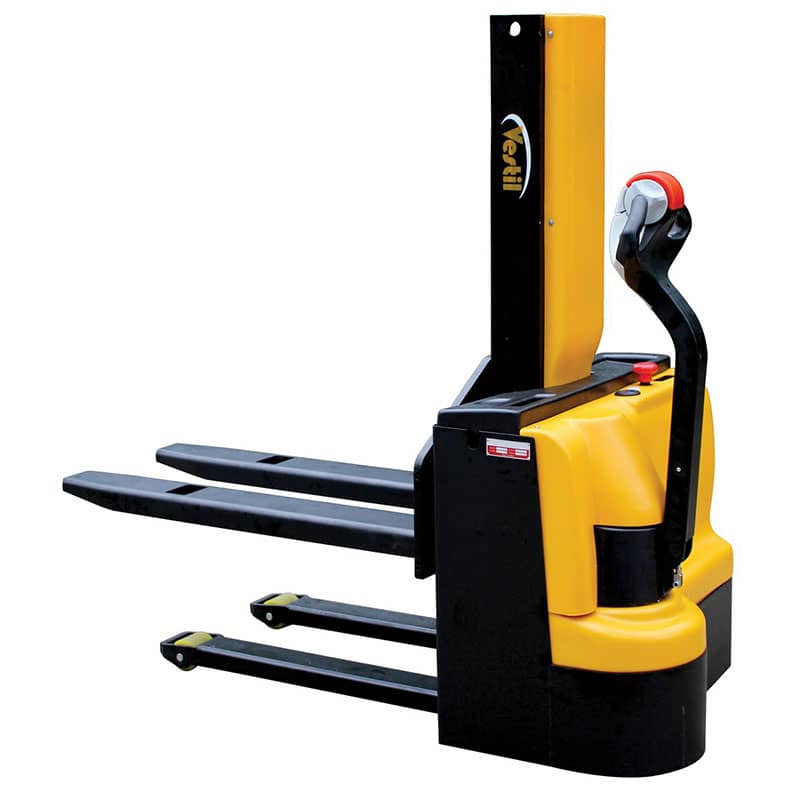

    Narrow Mast Stacker with Powered Drive and Powered Lift

    Fixed Forks / Fixed Support Legs (works with skids only)

    Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle.

    DC Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

    Narrow Mast Stacker with Powered Drive and Powered Lift
    Fixed Forks Over Fixed Support Legs (works with skids only)
    ModelFork Size
    (WxL)
    Lowered
    Height
    Raised
    Height
    Uniform
    Capacity
    0"-62" RH
    Uniform
    Capacity
    62"-118" RH
    Wt.
    (lbs)
    SNM15-62-FF-27*26-3/4"x42"3-3/8"62"1,500 lbs.--990
    SNM3-43-FF-2121"x42"3-3/8"43"3,000 lbs.--1256
    SNM3-43-FF-2726-3/4"x42"3-3/8"43"3,000 lbs.--1266

    Available Options

    ModelDescriptionWt (lbs.)
    AGM-UPG-2-12VAGM Battery Upgrade (2x12V) must be purchased with new unit80
    SL-DKSolid Platform46


    Go to Survey FormGo to Options for Stackers

    Narrow Mast Stacker with Powered Drive and Powered Lift

    Fixed Forks / Fixed Support Legs (works with skids only)

    Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle.

    DC Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

    Narrow Mast Stacker with Powered Drive and Powered Lift
    Fixed Forks Over Fixed Support Legs (works with skids only)
    ModelFork Size
    (WxL)
    Lowered
    Height
    Raised
    Height
    Uniform
    Capacity
    0"-62" RH
    Uniform
    Capacity
    62"-118" RH
    Wt.
    (lbs)
    SNM15-62-FF-27*26-3/4"x42"3-3/8"62"1,500 lbs.--990
    SNM3-43-FF-2121"x42"3-3/8"43"3,000 lbs.--1256
    SNM3-43-FF-2726-3/4"x42"3-3/8"43"3,000 lbs.--1266

    Available Options

    ModelDescriptionWt (lbs.)
    AGM-UPG-2-12VAGM Battery Upgrade (2x12V) must be purchased with new unit80
    SL-DKSolid Platform46


    Go to Survey FormGo to Options for Stackers

    Products specifications
    Fork TypeFixed Forks
    TypeFull Power
    Power TypeDC - DC 12V battery
    Support Leg TypeFixed Legs
    Ask a Question or Leave a Review
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *
    Stacker Pwr Lift/Dr Fix Frk 62 In 1500 Lb
    $5,943.75
    Narrow Mast Stackers with Powered Drive and Powered Lift. - Features: Fixed Forks Over Fixed Support Legs (works with skids only) Fork Size: (WXL): 26-3/4"x42", Lowered Height: 3-3/8", Raised Height: 62", Capacity(lbs) 0"-62" RH: 1,500 lbs., Weight: 990
    SKU: SNM15-62-FF-27
    Manufacturer part number: SNM15-62-FF-27
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    2+
    4+
    8+
    16+
    Price
    $5,763.64
    $5,594.12
    $5,434.29
    $5,283.33
    Shipping:: Usually ships in about 3-5 days
    Stacker Pwr Lift/Dr 21 Frk 43 In 3000 Lb
    $7,617.10
    Narrow Mast Stackers with Powered Drive and Powered Lift. - Features: Fixed Forks Over Fixed Support Legs (works with skids only) Fork Size: (WXL): 21"x42", Lowered Height: 3-3/8", Raised Height: 43", Capacity(lbs) 0"-62" RH: 3,000 lbs., Weight: 1256
    SKU: SNM3-43-FF-21
    Manufacturer part number: SNM3-43-FF-21
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    2+
    4+
    8+
    16+
    Price
    $7,386.28
    $7,169.04
    $6,964.21
    $6,770.76
    Shipping:: Usually ships in about 3-5 days
    Stacker Pwr Lift/Dr 27 Frk 43 In 3000 Lb
    $7,451.73
    Narrow Mast Stackers with Powered Drive and Powered Lift. - Features: Fixed Forks Over Fixed Support Legs (works with skids only) Fork Size: (WXL): 26-3/4"x42", Lowered Height: 3-3/8", Raised Height: 43", Capacity(lbs) 0"-62" RH: 3,000 lbs., Weight: 1266
    SKU: SNM3-43-FF-27
    Manufacturer part number: SNM3-43-FF-27
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    2+
    4+
    8+
    16+
    Price
    $7,225.92
    $7,013.39
    $6,813.01
    $6,623.76
    Shipping:: Usually ships in about 3-5 days
    Products specifications
    Fork TypeFixed Forks
    TypeFull Power
    Power TypeDC - DC 12V battery
    Support Leg TypeFixed Legs
