    Manufacturer: Vestil Mfg

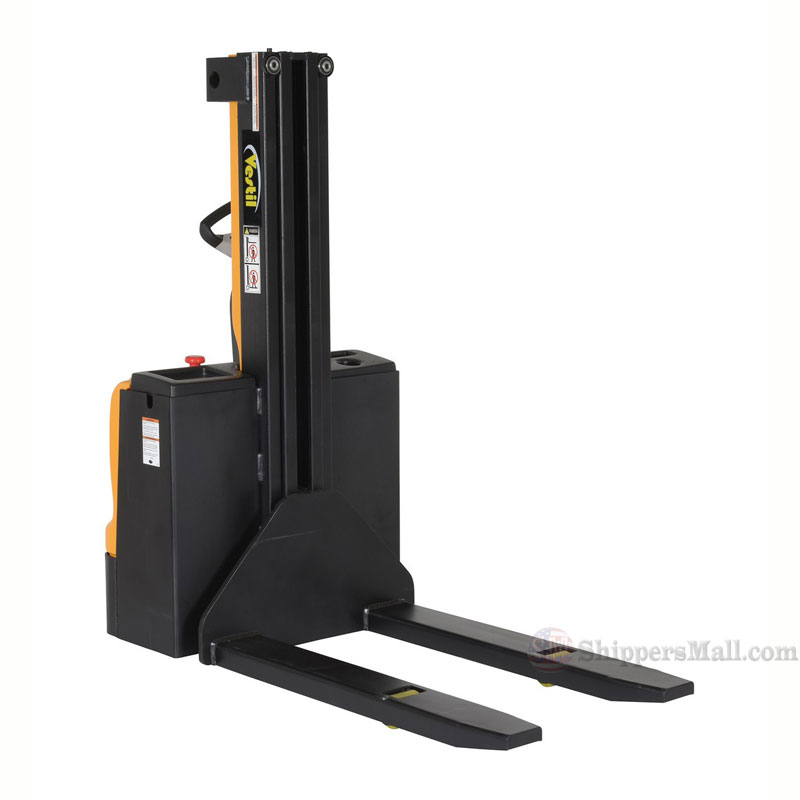

    Narrow Mast Stacker Pwr Lift/Dr, 27" Fix Forks/Legs, 90"H

    $8,151.10
    Narrow Mast Stackers with Powered Drive and Powered Lift. - Features: Fixed Forks Over Fixed Support Legs (works with skids only) Raised Height: 90" High with 2200 lb. Capacity and 27" forks.

    Scroll Down

    SKU: SNM-90-FF-27
    Manufacturer part number: SNM-90-FF-27
    Shipping:: Usually ships in about 3-5 days

    Narrow Mast Stacker with Powered Drive and Powered Lift 90" High, 2200 lb. Cap.

    Fixed Forks / Fixed Support Legs (works with skids only)

    Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle.

    DC Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

    Narrow Mast Stacker with Powered Drive and Powered Lift
    Fixed Forks Over Fixed Support Legs (works with skids only)
    ModelFork Size
    (WxL)
    Lowered
    Height
    Raised
    Height
    Uniform
    Capacity
    0"-62" RH
    Uniform
    Capacity
    62"-118" RH
    Wt.
    (lbs)
    SNM-90-FF-2726-3/4"x42"3-3/8"90"2,200 lbs.1,500 lbs.1500

    Available Options

    ModelDescriptionWt (lbs.)
    AGM-UPG-2-12VAGM Battery Upgrade (2x12V) must be purchased with new unit80
    SL-DKSolid Platform46

    Go to Survey FormGo to Options for Stackers

    Ask a Question or Leave a Review
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *

    Narrow Mast Stacker with Powered Drive and Powered Lift 90" High, 2200 lb. Cap.

    Fixed Forks / Fixed Support Legs (works with skids only)

    Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle.

    DC Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

    Narrow Mast Stacker with Powered Drive and Powered Lift
    Fixed Forks Over Fixed Support Legs (works with skids only)
    ModelFork Size
    (WxL)
    Lowered
    Height
    Raised
    Height
    Uniform
    Capacity
    0"-62" RH
    Uniform
    Capacity
    62"-118" RH
    Wt.
    (lbs)
    SNM-90-FF-2726-3/4"x42"3-3/8"90"2,200 lbs.1,500 lbs.1500

    Available Options

    ModelDescriptionWt (lbs.)
    AGM-UPG-2-12VAGM Battery Upgrade (2x12V) must be purchased with new unit80
    SL-DKSolid Platform46

    Go to Survey FormGo to Options for Stackers

    PRICE BREAKS - The more you buy, the more you save
    Quantity
    2+
    4+
    8+
    16+
    Price
    $7,904.10
    $7,671.62
    $7,452.43
    $7,245.42
