    Stacker Narrow Mast Pwr Drive Adj 90" H, 2500 Cap.

    Manufacturer: Vestil Mfg
    Narrow Mast Stackers with Powered Drive and Powered Lift. - Features: Adjustable Forks / Adjustable Support Legs (works with pallets & skids) - Raised Height: 90" and 2500 lb. Capacity

    Scroll Down

    SKU: SNM-90-AA
    Manufacturer part number: SNM-90-AA
    PRICE BREAKS - The more you buy, the more you save
    Quantity
    2+
    4+
    6+
    10+
    Price
    $11,343.74
    $10,989.25
    $10,656.24
    $10,342.82
    $11,721.87
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Shipping:: Usually ships in about 3-5 days

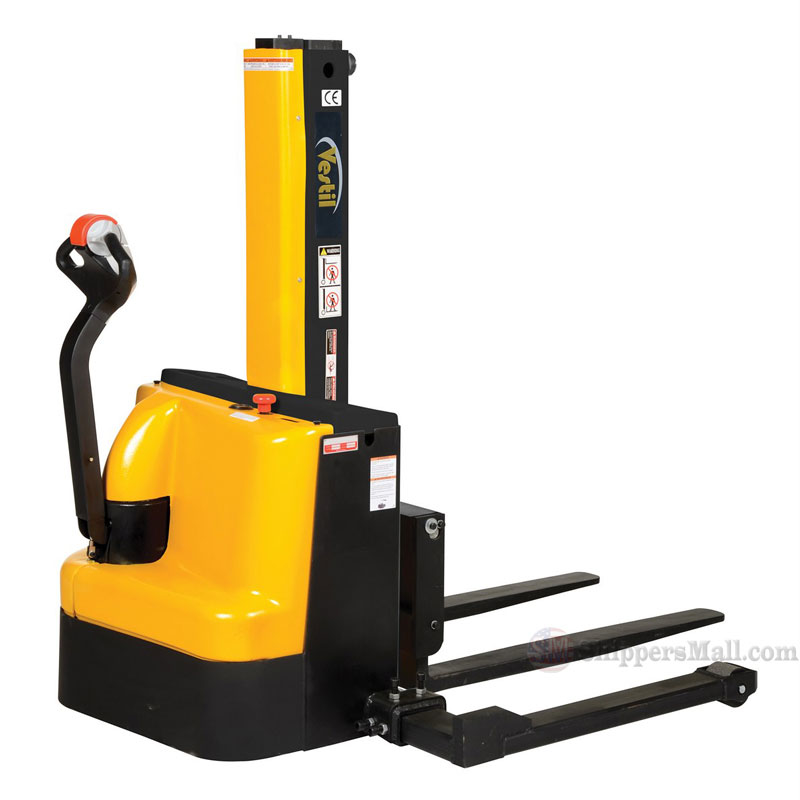

    Narrow Mast Stacker with Powered Drive and Powered Lift / Adjustable Forks / Adjustable Support Legs / Forks Raise 90" High.

    Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle.

    DC Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

    Narrow Mast Stacker with Powered Drive and Powered Lift
    Adjustable Forks / Adjustable Support Legs (works with pallets & skids)
    ModelFork Size
    (WxL)
    Lowered
    Height
    Raised
    Height
    Uniform
    Capacity
    0"-62" RH
    Uniform
    Capacity
    62"-118" RH
    Wt.
    (lbs)
    SNM-90-AA8.3"to26-3/4"x42"2-1/8"90"2,500 lbs.2,000 lbs.1502

    Available Options

    ModelDescriptionWt (lbs.)
    AGM-UPG-2-12VAGM Battery Upgrade (2x12V) must be purchased with new unit80
    SL-DKSolid Platform46


    Go to Survey FormGo to Options for Stackers

    This item is too large for UPS Shipping.

    We can get much better rates by quoting the shipping cost and ship via LTL carrier. Use the "Contact Us" tab on this page and send us the Ship to information. (the product name and sku# will automatically be included in your message) We will reply with a shipping quote ASAP.

    • We need FULL ship to address.
    • Quantity of the item purchasing.
    • After you receive your quote, you add the shipping cost to your order by using the link below.

     CLICK HERE TO ADD QUOTED SHIPPING COST TO YOUR ORDER

    Products specifications
    Fork TypeAdjustable Forks
    TypeFull Power
    Power TypeDC - DC 12V battery
    Support Leg TypeAdjustable Legs
