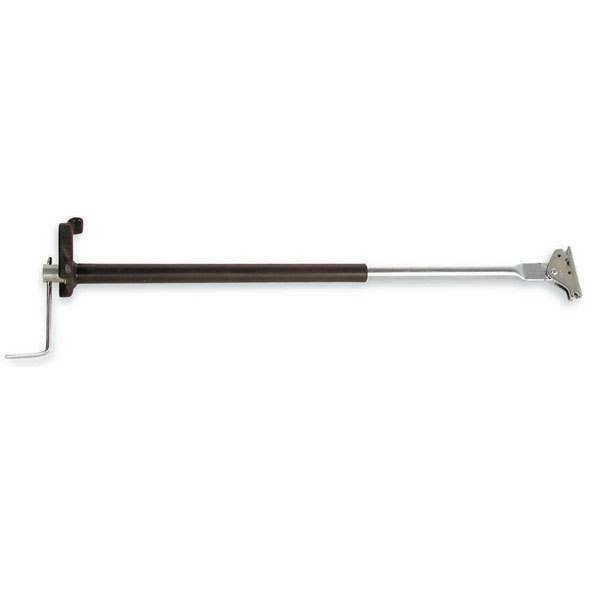

Cart Lock - Full Head - Kinedyne FE8090-2-1

The unique design allows for easy installation and removal from Kinedyne series E or A track. The cart lock fits into the track and swings into place to firmly hold the cart against the sidewall with a vise type clamp action. The system provides an open aisle for quick easy access and stores vertically with minimum protrusion. The FE8090-2-1 is a full head design used between carts and the FE8090-4-1 is a half head design for end carts. Both feature a vinyl coating to prevent the marring of carts and a heavy gauge steel construction to assure durability and reliable performance in trucks refrigerated to -20F temperatures.

• (U.S. Patent Number 4,475,855)
• Adjusts from: 24" to 33".
• Working Load Limit: 800 lbs./365 kgs. (while perpendicular to face of track)
• Weight: 3.9 lbs., 1.7 kgs.

Standard Packaging; 10,Skid Qty: 160, Priced Per: EACH
