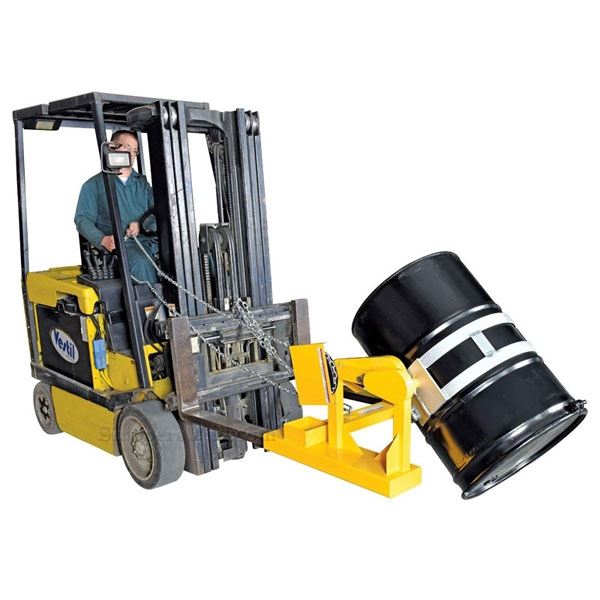

Fork Truck Drum Carrier / Rotator 1500 lb. Capacity
Each unit is provided with a 15 foot long chain to allow the drum to be rotated up to 360° from the fork truck operator's seat. Fork pockets measure 7-5/8"W x 2-5/8"H usable. Safety restraint is used to secure unit to fork truck. Bung Nut Wrench, model BNW-I, is also included for opening and closing drums.
Fork Mounted Drum Carrier/Rotator
15 Foot Pull Chain Rotation
|
| Model |
Drum Restraint Method |
Acceptable Drum Styles |
Capacity (lbs) |
Crank Turns Per 90 º Rotation |
Wt. (lbs) |
| DCR-205-15 |
33" Chain |
55 Gallon Steel |
1500 |
10 |
222 |
Video: How to operate
Model Number Is DCR-205-15
Overall Width Is 38 3/4"
Overall Length Is 38 5/8"
Overall Height Is 25 15/16"
Fits 1- 55 Gallon Drum
Max Capacity Is 1,500 Lbs.
Fork Truck Restraint Chain Length Is 56" (Not Shown)
15' Rotation Pull Chain (Not Shown)
Fork Pocket Center-To-Center Is 31 3/8" Fc
Usable Fork Pocket Size Is 7" X 2 5/8"
Bung Wrench Included (Not Shown)
Lost Load Is 151 Lbs. (Approx)
Effective Thickness Is Fork Length Minus 29 3/4"
