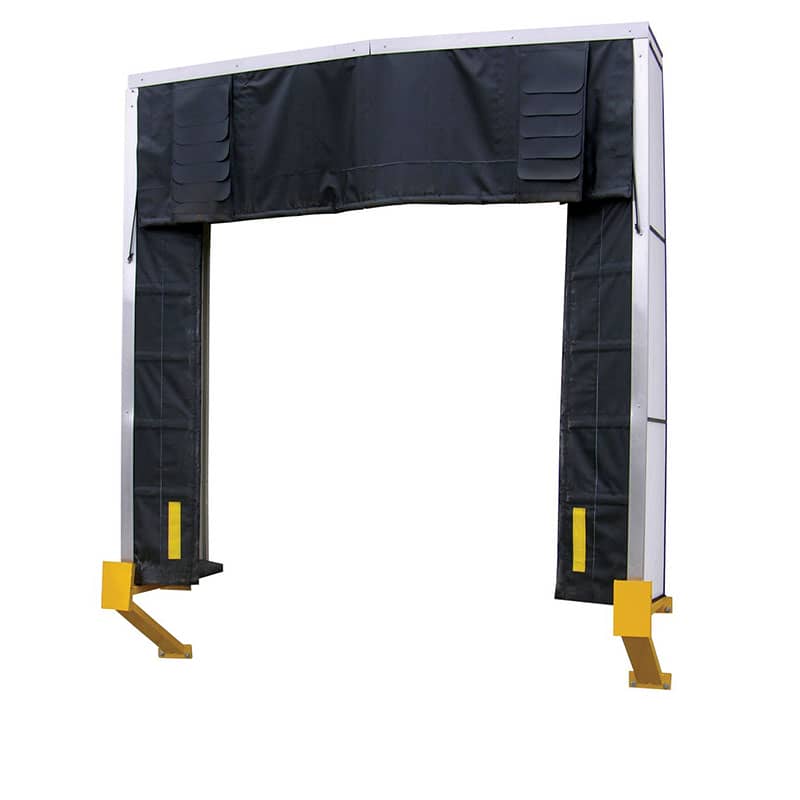

Truck Dock Shelters

Dock Shelters are used for doors up to 10 ft. wide x 10 ft. high. Dock shelters reduce oversized doors to match truck openings. The durable 36 oz. fabric is highly resistant to abrasion and tearing. Fiberglass staves are sewn into the flaps. A seal is formed along the sides and top of trailer when the vertical and top panels are pushed inward by the trailer therefore locking out the cold or hot weather and rain. We recommend a minimum 10" trailer penetration for a good seal. The supporting structure is made of 2" x 4" wolmanized treated lumber. The top header piece measures 132"W and contains a drop curtain which measures 36"H. Two vertical pieces measure 126" tall with vertical flaps measuring 21"W. When installed, the shelter will close the door opening down to 90"W x 90"H (between flaps). Includes two yellow steel guide protectors and foam-filled corner pads for extra sealing action.

Before choosing options for your loading dock shelter or loading dock seals, it is best to fill out the survey form below. *Units are non-returnable

Loading Dock Seals & Shelters Survey Form

Dock Shelters
Model Number	Projection	Overall Height	Overall Width	Door Opening	Wt. lbs.
D-750-18	18"	126"	132"	10'x10'	418
D-750-24	24"	126"	132"	10'x10'	478
D-750-30	30"	126"	132"	10'x10'	518
D-750-36	36"	126"	132"	10'x10'	563

Dock Seals & Dock helter Options
Model	Description
D-FHPFS	Full height pleats, full height guide stripes
D-FHPS	Full height pleats, standard guide (24" high)
D-AP	Armor pleats, top 24" only
D-54OZ	54 ounce material - face only (standard is 36 oz.)
D-18H	Upgrade to a 18" header
D-SV	Sloped verticals
D-BBF	Bottom Bun
D-BBFB	Bottom bun with bumpers
D-GS	Full height guide stripes
D-12F	12" flap
D-KIT	Six piece black vinyl patch kit (Dock Seals - D-150, D-350 and D-150/650 only)
D-750-RK	Six piece white vinyl patch kit (Dock Shelters - D-750 only)

Go to Options for Dock Seals & Dock Shelters
