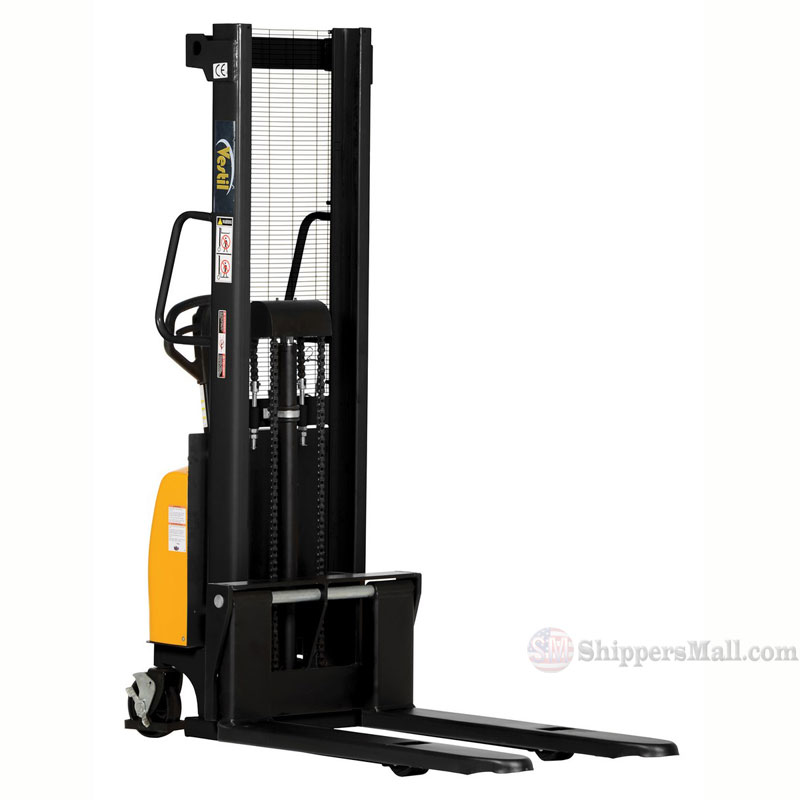

Combination Hand Pump and Electric Stackers with Fixed Forks and Fixed Support Legs

• Works with skids only (not pallets)

DC powered lift stacker with combination hand hydraulic pump backup if you have power outage or your simply feeling energetic. These stackers are  ideal for maintenance and commercial applications. Stacker can be used as manual hand pump lift or electric powered lift. They are perfect in a power outage when power is not available. Features a high quality hydraulic pump and DC lift system. Their compact design and strong steel profile construction makes them an economical lift to handle tasks such as transporting parts, skids or smaller shop items. Stacker is powered with two (2) 12V, 40Ah batteries. They have an integrated battery charger, battery level gauge, and adjustable lowering speed. All models are easily maneuverable using the standard pull handle. Eaqch fork is 6" wide.

Combination Hand Pump and Electric Stacker - FIXED FORKS OVER FIXED SUPPORT LEGS (works with skids only)
Model	Overall Fork Size (WxL)	Lowered Height	Raised Height	*Capacity(lbs) 0"-63" RH	*Capacity (lbs)63"-118" RH	Wt. (lbs)
SE/HP-63	26-3/4"x42"	3-3/8"	63"	2,000	--	754
SE/HP-98	26-3/4"x42"	3-3/8"	98"	2,000	1,500	902
SE/HP-118	26-3/4"x42"	3-3/8"	118"	2,000	1,500	950



Available Options for SE-HP Model Stackers
Model	Description								Wt (lbs.)
SE/HP-DK	Optional Solid Platform								40



Go to Options for Stackers
