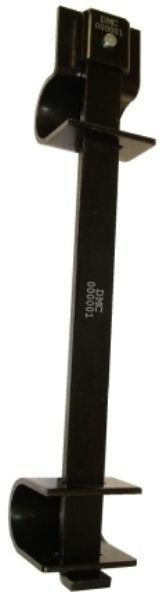

Container or Trailer Bar Seal

Do not settle for a standard steel bar that can easily be cut off with a hacksaw blade!

High Security Barrier Seal used on intermodal containers or on truck trailers equipped with swing type doors.

Every Shippers Mall barrier bar is uniquely serialized. A serial number is laser engraved on each bar component.

Component marking ensures that the bar is used as a set and discourages component replacement or tampering.

The hardened steel bar seal is a one time use high security seal that must be cut off using a grinding/cut-off (abrasive) wheel.

Applications

• Trailers
• Inter-modal Containers
• Dual swing doors utilizing locking rods

Features

• Hardened steel construction
• Can not be cut with a hacksaw
• No weld lines
• Painted finish
• Laser identification
• Each piece numerically matched to prevent component replacement
• Economical
• High Strength & High Security
• One time use
• Easy installation
• Adjustable length
• Unique serial numbers

Specifications:

• Adjustable: 2-1/4” to 12-5/8” locking bar distance (center to center)
• 1-1/4” bar width
• 5/16” thick main bar
• Seamless 3/16” thick rod cups
• Main Bar Shear Strength >16,000 lbs

Installation / Removal

• Slide U-bracket around right-side inner locking rod
• Insert main bar through slots in installed U-bracket, Slide through slots right to left with bend in main bar facing container*(*preferred installation, may be installed with bend facing out if required)
• Slide locking U-bracket around left inner locking rod
• Slide main bar through slots in the locking U-bracket
• Align holes in locking U-bracket and main bar
• Insert locking bolt to securely affix the locking bar - check for proper locking
• Record bar number on shipping documents
• To remove: While wearing proper safety equipment, cut the bar at the shown location with an abrasive cut-off /grinding wheel.
